PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine

LIANDA Machinery Co.,Ltd.

PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine

Brand Name : LIANDA

Model Number : LD-500/1000

Certification : CE,SGS,ISO9001

Place of Origin : CHINA

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Delivery Time : 40 working days

Packaging Details : Factory standard package or customized package

Voltage : 380V,Customized

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Field installation,commissioning and training,Online support

Warranty : 1 Year

Application : Plastic Recycling,Waste film washing line,drying

Automatic grade : Automatic

Production capacity : 300-2000kg/h

Material processed : Crushing-washing-drying,PP,Bottle Flakes,Plastic bottles/flakes

Plastic type : PP/PE, PP PE HDPE EVA Film(bottle)

Name : PP Woven/Jumbo Bag Plastic Recycling Machine

Final product : Clean plastic scraps

Keywords : Plastic Recycling Machine, waste plastic film bag washing line

Processing : Cutting-washing-drying

Function : Make Recycling Cleaning

Contact Now

Dirty PP Bag Washing Recycling Machine
PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine

>>>>Soft Plastic (Film/woven bag/fiber/rope) Washing Line has smart modular design aiming at agricultural film, industrial packaging film, bag, blowing molding packaging bottle/box, injection and electronic waste recycling. It is including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular. Which can remove most of contaminants such as ferrous and nonferrous metals, sand, oil, glue, paper label and many other different contaminants efficiently. Moreover, turn key solution can be provided with all water treatment, processing of sludge, paper stick, labels and etc.

>>Including metal detector, crusher, high speed friction washing,hot/cold washing and drying machine.
You can get a different module combinations design from Lianda according to your requirements. In range of different raw materials, Lianda provides 300-1000kg/h economy and high-level production lines.



Machine List and working processing
PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine

>>After getting waste plastic raw material, LIANDA Technicians will study and analysis the main contaminants , then provide a proper solution to remove most of the impurities by the idea of mechanical, chemical, physical.

PP PE Film plastic recycling machine line
(You can get a different module combinations design from Lianda according to your requirements)

PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine

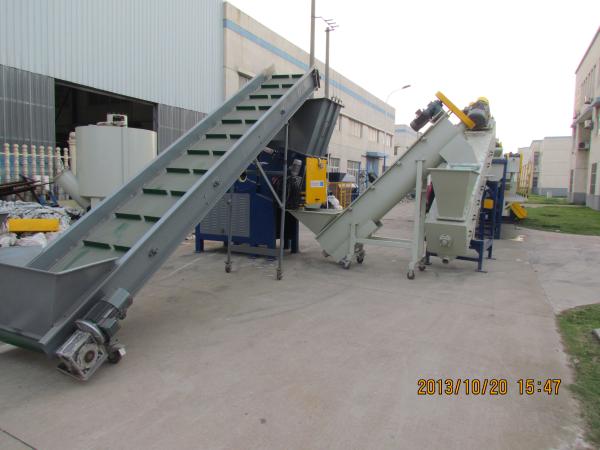

Belt conveyor Load the plastic films to the Crusher
Crusher Machine Cut plastic films into film scrap with water for pre-washing and good for crusher blades

Friction washer
(Low speed)

Combined with Crusher.To have pre-wash and centrifugation of the flakes
Screw feeder Load the flakes
Floating washer

Hot washing/cold washing for customized.
Remove oil ,chemicals, dust, sands, sludge, soil and other sink contaminants

Screw discharger Load the film scraps
High speed friction washer Remove water/glue/dirty from flakes by strong forced friction and centrifugation.
Floating washer To clean again
Screw discharger Load the film scraps
Film dryer To dry thefilms. Final moisture can be about 10%
Silo Storage the cleaned, dried flakes
Electrical cabinet Control the full line
Note Film dryer can be Horizontal dewatering machine or Film squeezing dryer or Film squeezing pelletizing dryer ( it is optional)


Machine Photos
PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine
PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine

Machine Photos
PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine

PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine

Crusher Machine
>>In the field of soft plastic crushing, to the toughness and high winding characteristics of LDPE film and PP woven/ Jumbo/Raffia bag materials, LIANDA has designed a special "V"-shaped crushing blade frame and a back knife type knife loading structure. On the basis of the original old equipment, the production capacity is increased by 2 times.

It is also ideal machine for the secondary cutting when positioned behind pre-shredders of recycling systems.

PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine

High speed friction washer
>> Strongly friction to clean the materials mechanically
>>With the function of dewatering









PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine >>Flotation washer for cleaning size reduced plastic scraps, by rotary paddles and water, which can remove most of the dust,sands, sludge, soil and other sink contaminants.
>>The main principle is to use the specific gravity of water,specializing in the initial wash and rinse of submerged and floating materials,it can effectively separate the sediment and metal in the material. The system will discharge the sink contaminants,such as sands, sludge, sink plastic, metals through the pneumatic bottom valves automatically. It will ensure the good washing condition of water.
PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine

>>It is mainly used for removing moisture
from the film/bags and other soft material. It can efficiently remove the humidity from soft plastic materials.
>>Film Squeezing Pelletizing dryer remove the water of the washed film by screw pushing and electrical magnetic heating. with the screw squeezing and electrical heating, the washed films will be had high degree of drying and full plasticized, low power consumption, high output. The final moisture is only 3-5%.

1. What can our machines do for you?

>>High automation, only 2 workers are required to operate
>>High production capacity (more than 30% higher than the same equipment in the same industry), low energy consumption (water, electricity, gas, chemical cleaning agent consumption is 20% lower)
>>Reasonable process design and good cleaning effect
>>Reliable components, internationally renowned brands, reliable quality, low maintenance costs
>>Cost-effective, high profit return

HOW TO ENSURE THE QUALITY!

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory



Our Service
PP Bag Dirty Washing Machine , SGS Polypropylene Recycling Machine
1.We will provide testing if the customer comes to visit factory to see the machine.
2.We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents which customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty time,we will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole lifetime .
